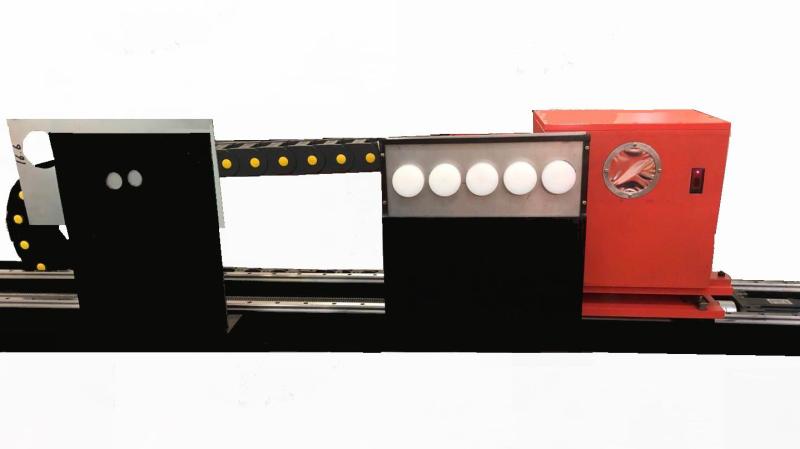

COATING THICKNESS GAUGE XTC-100PTC TYPE equipment uses X-Ray equipment to excite the X-ray fluorescence the radiation of the sample. It can non contact measure the thickness of the coating metal on a high speed basis. Online testing and real time control can be reached on the coating production line. Currently RAYING TECH coating thickness can used for composite coatings, such as Zinc, Tin, Chromium, esc.
Product Advantages:
- High accuracy and high speed measurement without contact
- Online testing and real time control
- Effectively control and improve product quality and production efficiency
MODEL TYPE | XTC-100PTC |
MEASURED COATING | Zinc, Tin, Chromium and other composite material |
SUBSTRATE (STEEL) | Thickness range 0.3-2.5mm |
COATING WEIGHT MEASUREMENT RANGE (SINGLE SIDE) | Zn（GI）10 g/m2-600 g/m2 55%Al/Zn（GL）10 g/m2-400 g/m2
|
SCAN WIDETH | 0-1200mm （can be customized） |
AVERAGE RESPONSE TIME | 35ms |
SAMPLE TIME | 10ms |
REPRODUCIBILITY | GI, ±0.2% of Measured coating weight or ±1g/m2, whichever is higher |
MEASURING DISTANCE | Approx. 30mm |
CALIBRATION FREQUENCY | Every 8 Hours |
TIME TO PEAK TIME | 180s |
TOTAL STABILITY (DRIFT) | 0.1 % within 4 hours (100g/m2) |
